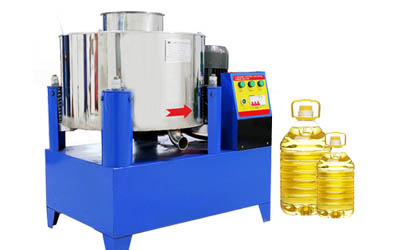

Centrifugal Edible Oil Filter Press

Centrifugal filter press is a specialized equipment used in the separation of oil, water and impurities in edible oil. It operates by using high-speed centrifugal force, which separates the impurities from the oil. Compared to other filtration equipment, centrifugal filter press is more efficient, easier to operate and requires no consumables for long-term use.

The centrifugal filter press is designed to provide a solution to the problems associated with the traditional plate filter press. The latter involves a complicated operation, heavy work intensity and troublesome load. The centrifugal filter press has a protection system that ensures it operates with stable performance, high safety performance, and better filtering performance than other products.

Specifications of filter press:

Features of centrifugal filter press

The centrifugal filter press has several features that make it a preferred choice for oil filtration.

Firstly, the filtration speed is fast, filtering once every 3-4 minutes, and each time the oil filtering amount is 15-25kg. Additionally, the oil residue is cleared once every 1000Kg filtration amount, making it convenient to operate.

Secondly, the centrifugal filter press does not require any consumables for long-term use, and there is no filter cloth cleaning or filter cloth consumption. This makes it cost-effective, as it does not require frequent maintenance or replacements.

Finally, the centrifugal filter press is power-saving. After the power is turned on, the drum turns to the normal speed to break the power supply, and the centrifugal force of the drum is used for oil quality filtration. This results in energy efficiency, making it a sustainable solution for oil filtration.

Working principle and features:

Centrifugal filter press adopt the rotating drum with high speed to separate the oil, water and residues rapidly. The fist step is to add 1% plain boiled water with 60-70 degree into the crude oil with 80-90 degree which is ready to deal with, the foam in the crude oil has disappeared after 1-2 minutes stirring, resin phosphorus in the crude oil are closely contacted with water, expanding and mutually condense into liquid glue grease gradually. When the crude oil has left a thin layer of tiny bubbles, the centrifugal are started and the hydrated oil are poured into the machine, cut down the electricity after 10-15 seconds of rotating. The oil, residue, resin phosphorus and water are separated rapidly in the high speed rotating drum. When the drum stops, pure and clear oil are flow out from the surface of micro water molecules of the rotating drum. The oil fat and resin phosphorus are adhere to the in wall of the drum. The clear oil after 1-2 hours sediment are up to National oil standard.

Preparation for installment of filter press:

1. The centrifuge filter press is horizontally arranged in the pre treated horizon, the prefabricated foundation should be solidify and maintain for 5-7 days before use. If the ground is uneven, it will cause the machine running with instability and jitter.
2. Before starting the machine, examine the screw on the cover of the barrel and the foundation bolt are not loose. Then the centrifuge filter press can be started.
3. Access the engine electricity and the ground electricity, cut down the power electricity after starting the machine, the drum should be rotate in the clockwise direction through observation.
4. The centrifuge filter press should be running idle for 5-10 seconds after starting the engine. Check up whether there is abnormal sound in the machine. If it has abnormal sound, please check up the rotating drum, top cover, foundation and screws whether are fixed or not, and check up whether the bearing is normal or not.
5. The machine should be lubricant before starting with pure peanut oil, and the top bearing should be lubricant. It is advisable to add lubricant oil every 2 hours work.
6. To start the machine without fixed the covered bolt outside the machine body is prohibited. To start the machine without abide by the rules are prohibited.

The centrifugal filter press is a highly efficient, cost-effective and sustainable solution for oil filtration. It is easy to operate, requires minimal maintenance, and produces high-quality, clean oil. We offer a wide range of oil machinery, including single machines and turnkey projects, as well as other vegetable oil plant options.
